Calibrateable resistance thermometer THERMASGARD® RPTM-2 with continuous output with terminal box enclosure made of impact-resistant plastic and enclosure cover with quick-locking screws. This room pendulum sensor is specifically designed for temperature detection in larger rooms and halls, as dark radiation sensor for example. Due to the measuring method employed by this pendulum room temperature sensor in combination with its positioning in the room, an excellent and room-representative measuring result is achieved. The globe thermometer THERMASGARD® RPTM-2 determines the effective portion of active radiation or the effective radiant heat at the measured location. The globe temperature is determined for taking heat radiation into consideration and for the evaluation of thermal comfortableness (operative room temperature). The operative room temperature describes the coaction of heat radiation and heat convection (the ratio of globe temperature / air temperature is ca. 70 % / 30 %).

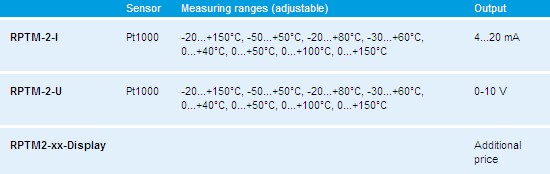

Pendulum room temperature measuring transducer THERMASGARD® RPTM-2 with globe:
