PREMASGARD® 1110 series calibrateable compact pressure sensors are equipped with eight switchable measuring ranges and optional with display (8 devices in one) and are used for measuring above-atmospheric, below- atmospheric, or differential pressures in air. The piezo-resistive measuring
element is temperature and pressure compensated and guarantees a high degree of reliability and accuracy. These pressure transmitters have a pushbutton for manual zero point calibration and an adjustable offset. Applications of these pressure sensors are in clean room, medical and filter
technology, in ventilation and air conditioning ducts, in spray booths, in large-scale catering facilities, for monitoring filters, for level measurement or for triggering frequency converters. Media measured with these pressure transducers are air (non - precipitating), or other gaseous non-aggressive,
non-combustible media. A PREMASGARD® 1110 series pressure sensor has 8 selectable measuring ranges and therefore, minimizes the diversity of types and stockkeeping while covering a greater range of applications. The differential pressure sensor is supplied including connection set ASD-06
(2 m connection hose, two pressure connection nipples, screws).

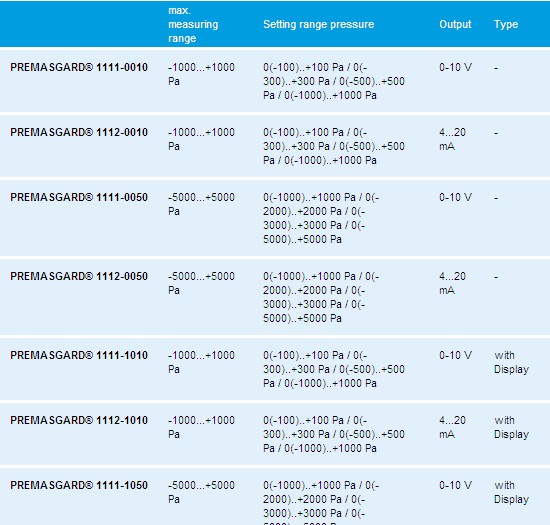

Pressure and differential pressure measuring transducers PREMASGARD® 1110 including connection set:
